Product description
1, the engraving engraving and milling models for 2 kinds of knife, processing a variety of flowers without changing the knife, the program automatically, and its main features are less investment, high income, and a small amount of maintenance, easy to operate, for NC operation capable, programming operation is very easy.
2, advanced motion control system, automatic completion of multiple levels of 3D processing, can be fast, smooth three-dimensional processing, engraving or cutting, can be achieved offline.
3, the overall steel structure welding, tempering aging treatment, solid deformation, Longmen type mobile, working table fixed, can be arbitrary processing of materials on the work table.
4, using imported linear square rails, double row and four column ball slider, loading capacity, smooth operation, high precision, long service life. Imported ball screw with high precision, accurate cutting tool.
5, software compatibility is good, can be compatible with a variety of CAD/CAM, such as type3/Artcam/Castmate/ design and production software.
Six, 6 partition vacuum adsorption mesa, can be effective for the adsorption of different sizes of plates. Vacuum pump can be selected to import the oil vacuum pump to solve the problem of water circulation vacuum pump in the cold weather.
7, using high-speed drive stepper motor and driver, Y axis adopts double motor drive, to make high-speed operation up to 35 m / min line speed of the air above, with vigorously cutting engraving spindle speed can be more improved.
Field of application
Woodworking industry: three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint free door, screen, craft window processing, shoe polisher, game cabinets and panels, mahjong table, computer aided machining table and panel furniture products!
Performance characteristics

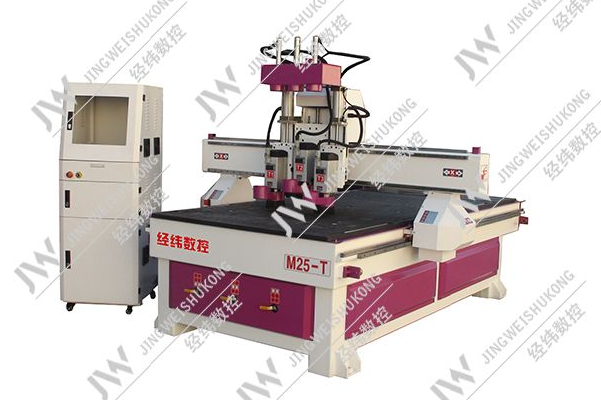

Type pneumatic knife engraving machine JWM1325-2T
X, Y axis travel 1300 x 2500mm
Z axis stroke 200mm
Max running speed 25m/min
Max engraving speed 10m/min
Resolution 0.005mm
Repeated positioning accuracy 0.05mm
Vacuum adsorption method
Engraving instructions *.u00*.mmg*.plt code G
Software running environment Windows98/2000/xp
Weihong control system
Working voltage AC380V/50Hz
Spindle power 3X4.5KW (air cooling)
Spindle speed 0-18000rpm/min
Working mode servo
Transmission rack
Run the three axis of the whole rail track (Taiwan, on silver or AMT)
