Product description

Main configuration

The use of domestic high-quality spindle.

The Taiwan automatic lubrication maintenance guide.

The high precision skew rack.

The servo drive system.

The CHINT electrical components, stable performance.

Functional properties /Features

The provincial boards: typesetting software advanced optimization, reducing the material waste, utilization rate of up to 95%.

The manual: program automation, single can operate multiple devices at the same time.

The time: continuous working equipment, pneumatic positioning system, convenient, fast and accurate, no need to adjust on foot.

This machine is easy to operate: the fool operation, full use of computer control, easy to learn, zero error, zero error. Ordinary workers after 3-5 hours of training to carry out the production operation.

Field of application

The machine is used for the opening of the plate type of furniture, the opening of the material, and can be processed at the same time various specifications of the back slot and the positive and negative side of the vertical hole.

Performance characteristics

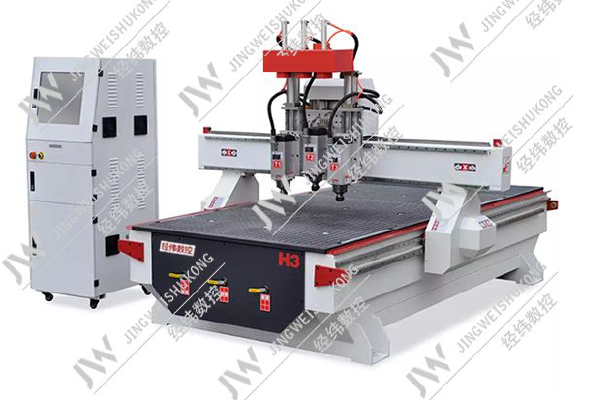

Model JW-H3

X, Y axis travel 1300 x 2500mm

Z axis stroke 200mm

Mesa size size Table 1480 * 3000mm

Maximum travel speed feeding 25m/min Max.

Max engraving speed working speed 10m/min Max.

Clamping mode Work-holding vacuum adsorption suction by

Software running environment for software Windows98/2000/xp Surroundings

Spindle power power Spindle 3 * 4.5/6.0KW (air cooling)

Spindle speed speed 0-18000r/min Spindle

Working voltage AC380/3PH/50HZ Voltage

Working mode mode Working servo /Servo
